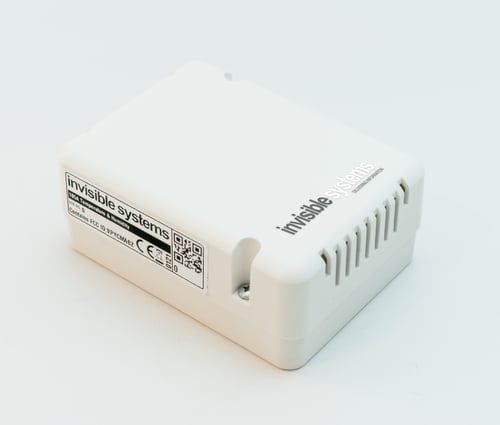

TEMPERATURE AND HUMIDITY LOGGER (125A)
Designed to monitor room temperature and air humidity to ensure optimal operating conditions and work environments, the ISL125A is battery powered, wireless and simple to install at any location. The ISL125A is available either as an NB-IoT device.
- Assists in ensuring optimal operating conditions in room environments
- Battery powered
- Wireless
- Able to work in remote locations
- High and low thresholds, hysteresis and actions configurable by end user for edge intelligence
- Range up to 10km line-of-sight
- Either internal or external antenna
- Configurable measure internal
- Configurable transmit interval for each mode
KEY FEATURES
.png?width=60&height=60&name=battery%20(1).png "battery (1)")
Long Battery Life
Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.
Reduce Costs
Identify problems before damage occurs to stop waste, prevent costly site shutdowns and reduce your fuel consumption.
A Proven Partner
At Invisible Systems, we've worked in IoT for over 17 years. Our solutions have a proven track record in supporting businesses.
.png?width=60&height=60&name=website%20(1).png "website (1)")
Real-Time Online
Together with Real-time Online, the sensors enable constant monitoring, deliver pro-active alerts on threshold breaches and generate bespoke reports
Reduce Carbon Emissions
Our products have been proven to reduce carbon emissions by as much as 83% on some construction sites
.png?width=60&height=60&name=two-settings-cogwheels%20(3).png "two-settings-cogwheels (3)")
Easy to Install
Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.
ADDITIONAL INFORMATION
CONFIGURABLE THRESHOLDS
Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.REAL-TIME MONITORING
NB-IOT
NB-IoT is a standards-based narrowband Low Power Wide Area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT devices connect directly to the cellular mobile network via a low-cost SIM card. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency.
TECHNICAL DATA
COMMS |
Band: 1, 3, 5, 8, 20, 28 Expected range (line of sight): Up to 10km Power: 23dBm ± 2dB |
APPROVALS |
CE, other regions available on request |
ENVIRONMENTAL |
Dimensions (mm): 95x70x40 Enclosure colour: White Enclosure plastic type: ABS Operating Temp Range: -20°C to +60°C Operating Humidity Range: 30% RH to 90% RH Battery: 1 x C-cell (8500 mAh) Batteries type: Lithium Thionyl Chloride (Non rechargeable) Expected battery life, 15 min Tx interval: Up to 3 years Expected battery life, 6 hour Tx interval: Up to 10 years Operating lifetime: Up to 10 years Power type: Battery 3.6VDC |
SENSOR FEATURES |
Measurement interval range: 30 secs - 60 mins Tx interval range (multiple of measure intervals): 1 min - 6 hours |
TEMPERATURE |
Measurement Range: -20°C to +60°C Accuracy:±0.3°C Resolution/Step-size: 0.1°C Drift: < 0.02 oC/yr Sensor characteristics: Digital Calibration: Optional |
HUMIDITY |
Measurement Range: 0RH to 100% RH Accuracy: ±2°C Resolution/Step-size: 0.5%RH Drift: < 0.25% RH/yr Sensor characteristics: Digital Calibration: Optional |
