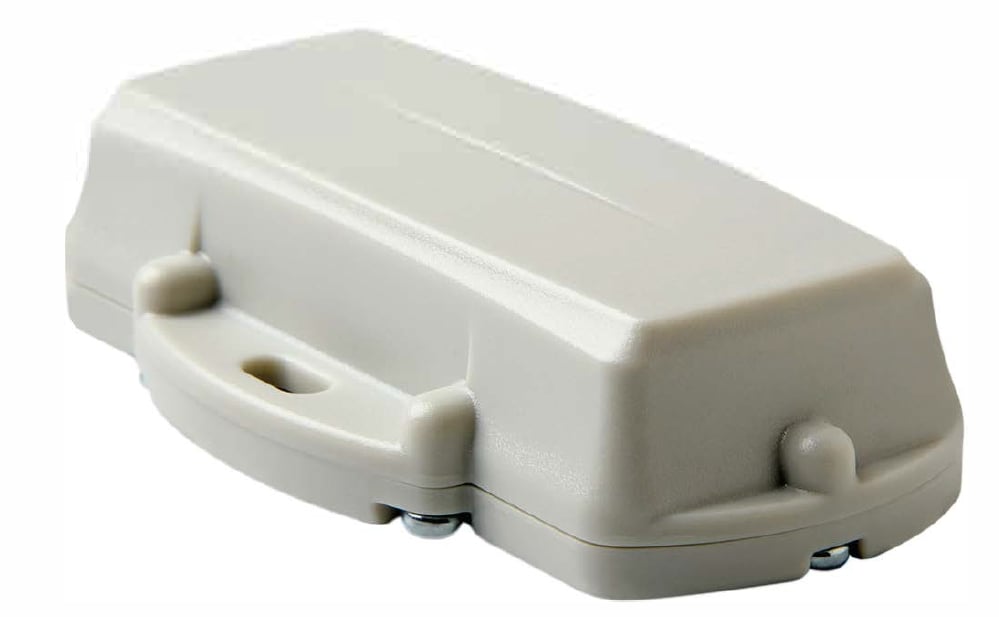

ASSET TRACKER (ISL AT1000)



The ISL AT1000 Asset Tracker is a tiny, lightweight and ultra-rugged battery-powered LoRaWAN® geolocation tag for affordable indoor and outdoor asset monitoring.
Easy to install, the device can be fitted to valuable assets for tracking and monitoring. The tracker provides periodic heartbeats to confirm location. If movement is detected, the tracker can switch to a faster update rate, providing increased tracking information when needed, whilst extending battery life at other times.


The ISL AT1000 Asset Tracker is also able to detect tilt and movement. It can be configured to send alerts if either the device rotates beyond a certain angle, or if movement occurs. Uses include monitoring fences, poles, road signs and more.

  • Highly sensitive radio receiver is available in 868 or 902 – 928MHz versions for global LoRaWAN® connectivity

  • IP67 rated housing ensures the device can withstand fine dust, high-pressure spray, submersion for 30 minutes in 1m of water, and extreme temperatures
  • Powered by 2 x AAA off-the-shelf, user-replaceable alkaline or lithium (LiFeS2) batteries
  • Optimized for low-power operation with up to 5 years of battery life
  • 3-axis accelerometer to detect movement and orientation
  • Configure devices to send updates based on set time intervals (1x, 3x, 5x a day) or when movement occurs
  • Configure alerts if the device rotates beyond a certain angle to monitor fences, poles, road signs, and more
  • Stationary devices enter sleep mode, switching the update rate to only once per day until movement occurs to conserve battery life and optimize data usage
asset_tracking

KEY FEATURES

battery (1)

Long Battery Life

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

notes

Reduce Costs

Identify problems before damage occurs to stop waste, prevent costly site shutdowns and reduce your fuel consumption.

checked

A Proven Partner

At Invisible Systems, we've worked in IoT for over 17 years. Our solutions have a proven track record in supporting businesses.

website (1)

Real-Time Online

Together with Real-time Online, the sensors enable constant monitoring, deliver pro-active alerts on threshold breaches and generate bespoke reports

co2

Reduce Carbon Emissions

Our products have been proven to reduce carbon emissions by as much as 83% on some construction sites

two-settings-cogwheels (3)

Easy to Install

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.

ADDITIONAL INFORMATION

CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.


LORAWAN

The ISL AT1000 is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.

TECHNICAL DATA

COMMS



Frequency/Band: AU915, AS923, EU868, IN865, KR920, RU864, US915

ENVIRONMENTAL

Dimensions (mm): 85x48x21

Weight: 60 g

Housing: ABS Polycarbonate Plastic

IP Rating: IP67 rated housing ensures device can withstand fine dust, high-pressure spray, submersion for 30 mins in 1m of water, and extreme temperatures

Installation: Compact and concealable
Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more

Operating Temperature: -20°C to +60°C

3-Axis Accelerometer: 3-axis accelerometer to detect movement and orientation

Diagnostic LED: Diagnostic LED signifies operation status

User-Replaceable Batteries: 2 x AAA

Battery Life: Up to 5 years of battery life at once-daily position updates
Enable intelligent movement-based tracking for longer battery life

Supported Battery Types: Alkaline Lithium (LiFeS2) – recommended

Input Voltage: 2.4-3.6V DC

Sleep Current: <10uA*
*Average current in lowest power configuration.

EDGE INTELLIGENCE



Periodic or Movement-Based: Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.

Sleep Mode: Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.

Tilt Detection: Configure alerts if the device rotates beyond a certain angle to monitor fences, poles, road signs, and more.

DEVICE MANAGEMENT

Flexible Configuration: Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.

Configuration App: Manage device firmware updates and parameters via a USB configuration cable and app. Some parameters can be changed via downlink.

SECURITY



Data Security: LoRaWAN® networks use AES-128 Encryption so your data is protected.
