ANALOGUE LOGGER (125J)



Designed to measure up to 4 analogue inputs along with the ability to be configured to read from a potentiometer or leak detection with optional leak detection cable or sensor pad.

  • Four analogue inputs

  • Selectable either as 0 – 1V, 0 – 5V, 0 – 10V, or 4 – 20mA full range via programmable-gain inputs

  • Battery powered
  • Wireless
  • Available as a ‘data as a service’ offering
  • Configurable measure and transmit interval
  • Configurable transmit interval for each mode (standard, warning and alarm

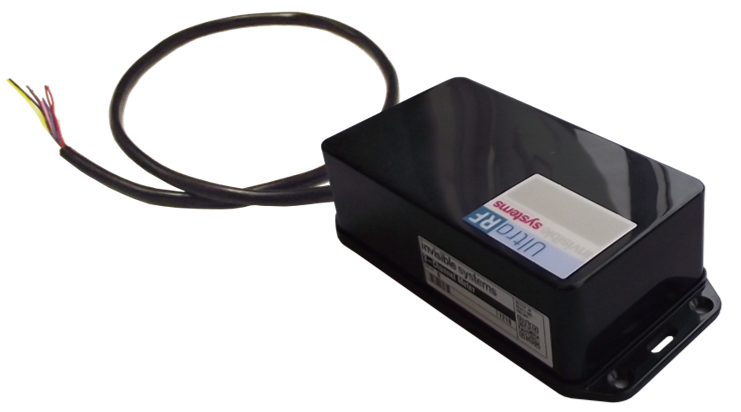

105_with_cable

KEY FEATURES

battery (1)

Long Battery Life

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

notes

Reduce Costs

Identify problems before damage occurs to stop waste, prevent costly site shutdowns and reduce your fuel consumption.

checked

A Proven Partner

At Invisible Systems, we've worked in IoT for over 17 years. Our solutions have a proven track record in supporting businesses.

website (1)

Real-Time Online

Together with Real-time Online, the sensors enable constant monitoring, deliver pro-active alerts on threshold breaches and generate bespoke reports

co2

Reduce Carbon Emissions

Our products have been proven to reduce carbon emissions by as much as 83% on some construction sites

two-settings-cogwheels (3)

Easy to Install

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.

ADDITIONAL INFORMATION

CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.


NB-IOT

Data NB-IoT is a standards-based narrowband Low Power Wide Area (LPWA) technology developed to to enable a wide range of new IoT devices and services. NB-IoT devices connect directly to the cellular mobile network via a low-cost SIM card. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency.

TECHNICAL DATA

COMMS



Band: 1, 3, 5, 8, 20, 28

Expected range (line of sight): Up to 10km

Power: 23dBm ± 2dB

APPROVALS

CE, other regions available on request

ENVIRONMENTAL



Dimensions (mm): 144x65x40

Enclosure colour: Black

Enclosure plastic type: ABS

Operating Temp Range: -20°C to +60°C

Operating Humidity Range 30% RH to 90% RH

Battery: 1 x C-cell (8500 mAh)

Batteries type: Lithium Thionyl Chloride (Non rechargeable)

Expected battery life, 6 hour Tx interval: Up to 10 years

Operating lifetime: Up to 10 years

Power type: Battery 3.6VDC

GENERAL

Measurement interval range: 10 secs - 60 mins

Tx interval range (multiple of measure intervals): 1 min - 6 hours

ANALOGUE



Inputs: 4 (in 2 pairs)

Measurement ranges: 0-1V, 0-5V, 0-10V, or 4 - 20mA
